Scientifica MicroStar Micromanipulator
Schematics

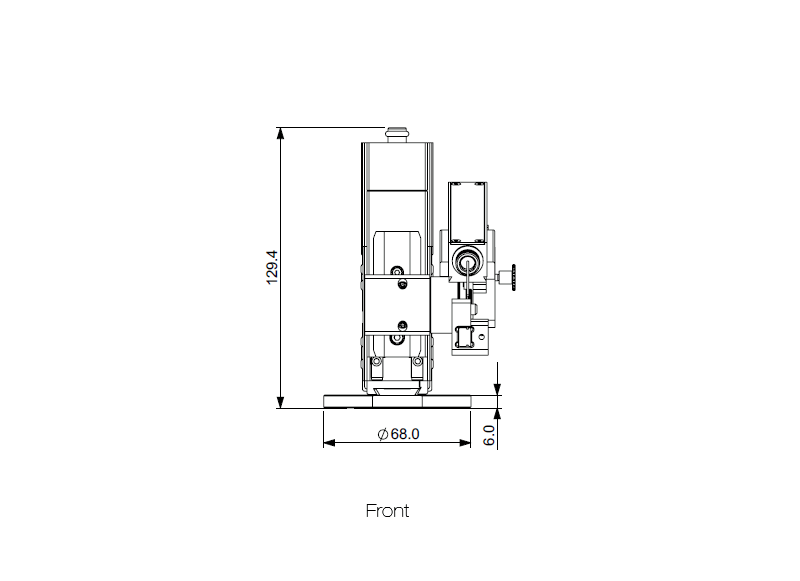

MicroStar Micromanipulator schematic - front view

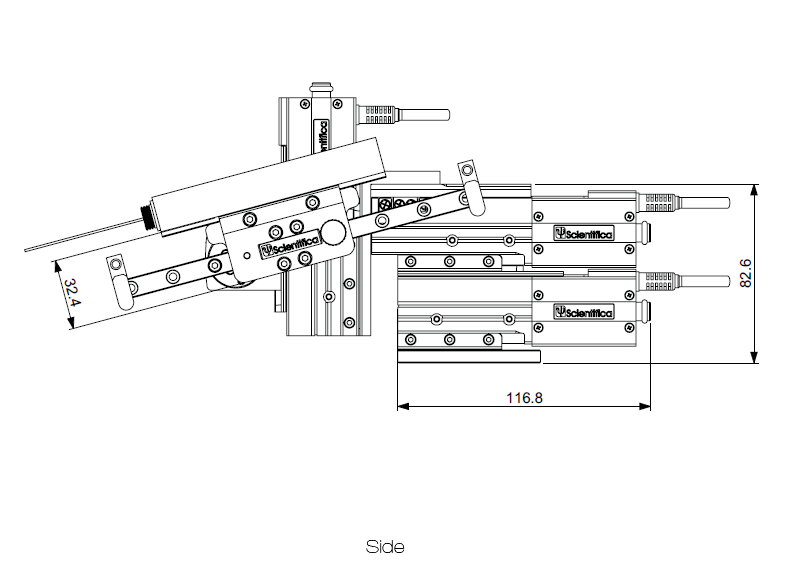

MicroStar Micromanipulator schematic - side profile

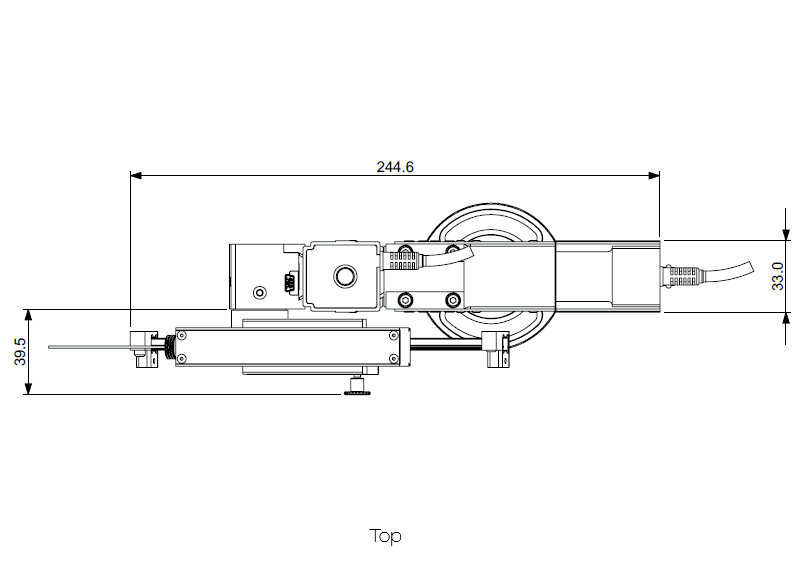

MicroStar Micromanipulator schematic - birdseye view
标准系统
We can customise this system to suit your unique experimental needs. Please contact us to discuss your requirements.
PatchPad or Control Cube
Accessories
For mounting a range of bars and probes.
With a v groove to hold glass capillaries.
Used to mount the MicroStar onto the Scientifica MMBP
Low-profile magnetic base to attach your MicroStar to your antivibration table or other platform.
Design & Specifications
- Number of axes: 3 orthogonal and 4th virtual
- Travel distance: 20 mm (in X and Z axes), 14 mm in (Y axis)
- Bearings: Crossed roller
- Minimum speed: 1 µm per second
- Maximum speed: 4 mm per second
- Electronic resolution: 20 nm
- Memory positions: Up to 50 on control device (unlimited via LinLab)
- Software: LinLab for Windows
调查报告
-
Functional organization of excitatory synaptic strength in primary visual cortex
Cossell, L., Iacaruso, M., Muir, D., Houlton, R., Sader, E., & Ko, H. et al. (2015). Functional organization of excitatory synaptic strength in primary visual cortex. Nature, 518(7539), 399-403. http://dx.doi.org/10.1038/natu...
-
Scanning Ultrasound (SUS) Causes No Changes to Neuronal Excitability and Prevents Age-Related Reductions in Hippocampal CA1 Dendritic Structure in Wild-Type Mice
Hatch, R., Leinenga, G., & Götz, J. (2016). Scanning Ultrasound (SUS) Causes No Changes to Neuronal Excitability and Prevents Age-Related Reductions in Hippocampal CA1 Dendritic Structure in Wild-Type Mice. PLOS ONE, 11(10), e0164278. http://dx.doi.org/10.1371/jour...
-
Exclusive functional subnetworks of intracortical projection neurons in primary visual cortex
Mean-Hwan, K., Znamenskiy, P., Iacaruso, M F., Mrsic-Flogel, T D. (2015). Exclusive functional subnetworks of intracortical projection neurons in primary visual cortex. bioRxiv. https://www.biorxiv.org/conten...
