Scientifica IVM Single
Schematics

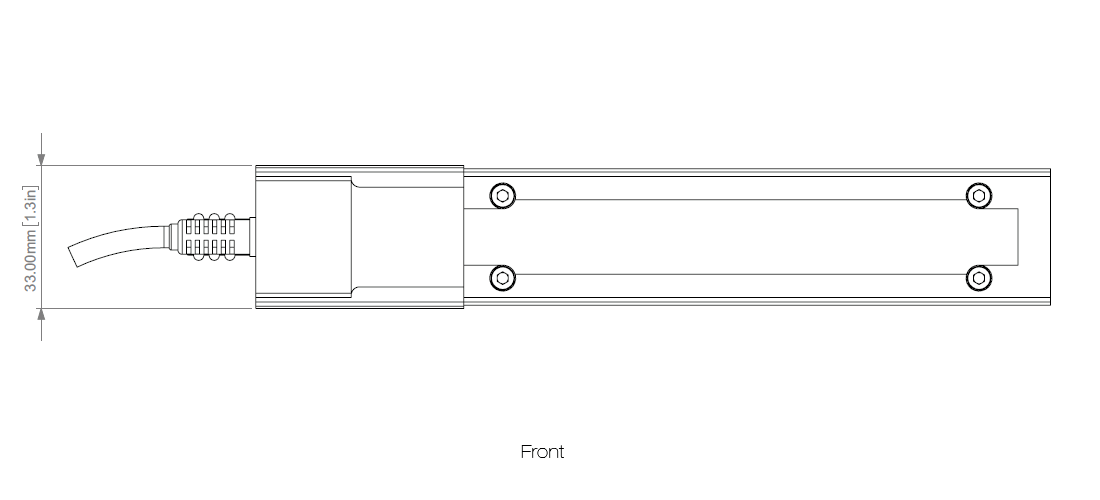

IVM Single - Front View

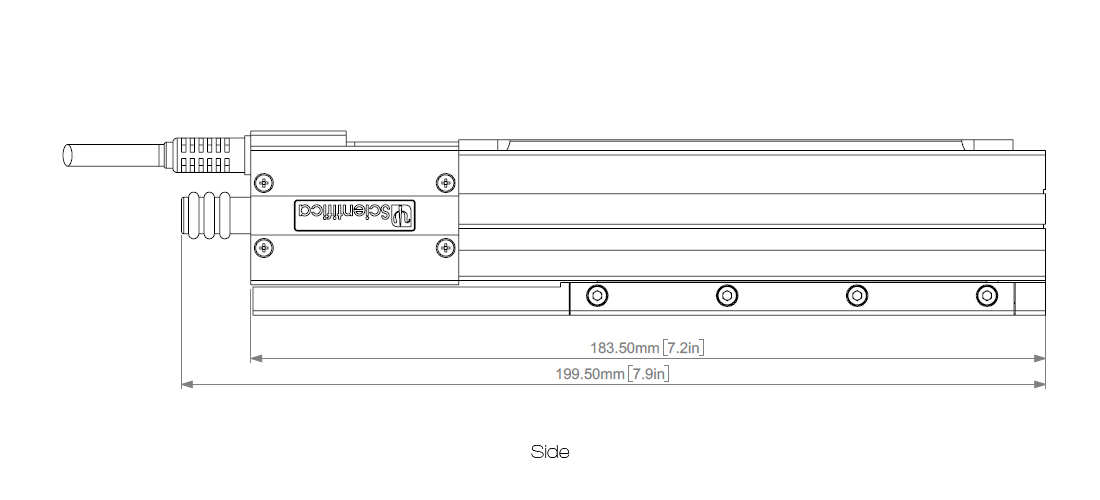

IVM Single - Side View

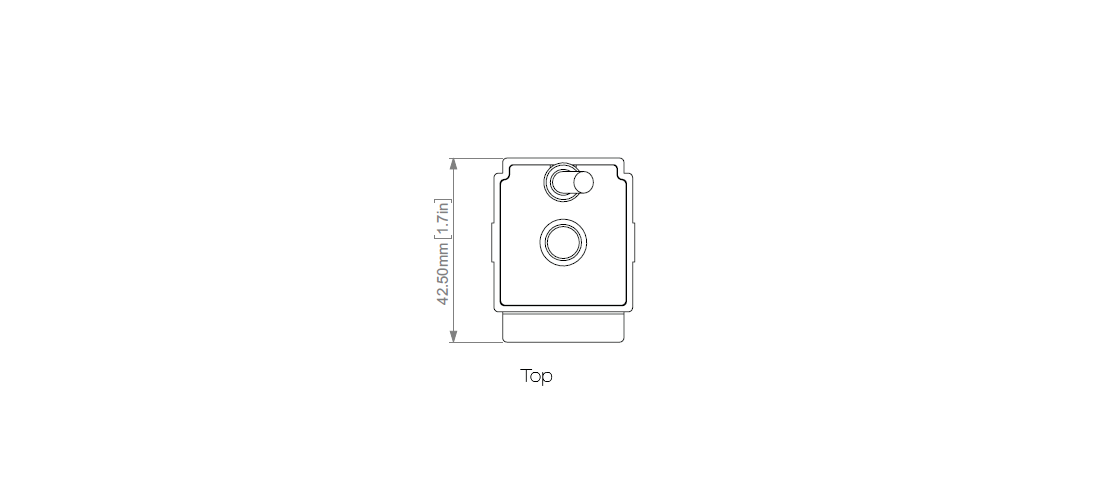

IVM Single - Top View
Accessories
Dovetail probe holder to fit bars/probes
Allows you to mount the IVM in one of four mounting positions on the Kopf or Stoelting manipulator.
This allows the approach axis of the LBM-7 to be removed, enabling the IVM be mounted in its place. It can then be rotated and locked in position at the correct angle.
Allows you to mount the IVM on the LBM-7 either to the approach axis stage or to the sliding carriage attached to the approach axis. If mounted on the approach axis stage it can only do so in the same axis as the stage. If mounted on the sliding bracket it can be mounted at 90º or in the same axis as the approach axis.
To hold capillary glass of 1-2 mm in diameter.
Allows you to mount the IVM in a single mounting position on the Kopf or Stoelting manipulator.
Design and specifications
- Number of axes: 1
- Travel distance: 70 mm
- Electronic resolution: 20 nm
- Minimum step size: 0.1 µm
- Minimum speed: 1 µm per second
- Maximum speed: 4 mm per second
- Memory positions: 50 on control device (unlimited via LinLab)
- Software: LinLab for Windows
