Scientifica IVM Mini Single micromanipulator Technical Data
Scientifica IVM Mini Single

Scientifica IVM Mini Single

Schematics

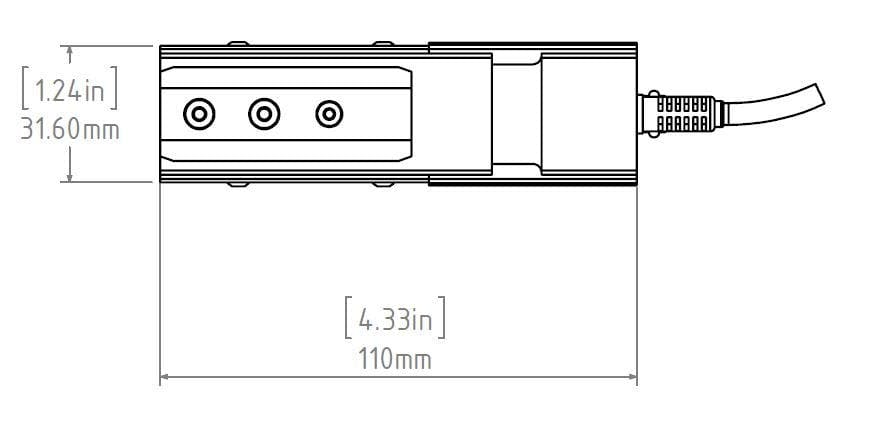

Front view

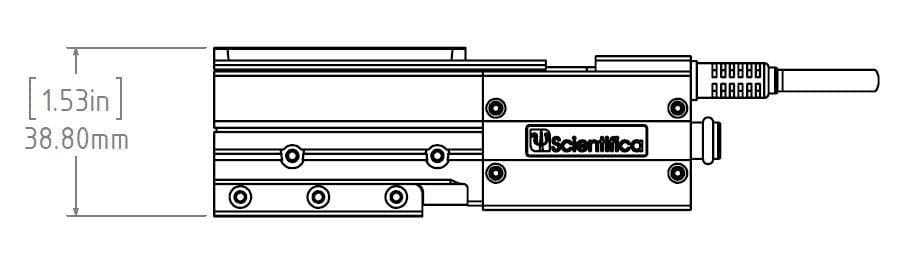

Side view

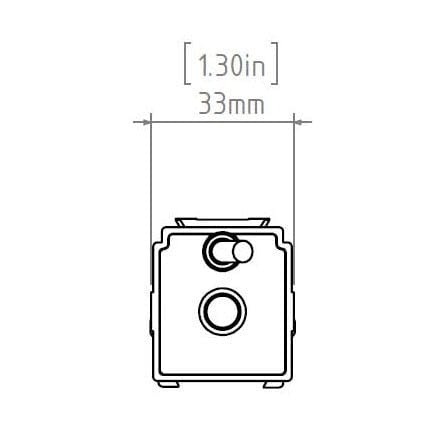

Top view

Accessories

Extended Right Angled Kopf Mount (IVM-650-00)

Allows you to mount the IVM in one of four mounting positions on the Kopf or Stoelting manipulator.

Dovetail Probe Holder (PH-1000)

Dovetail probe holder to fit bars/probes

Electrode Holding Bar

Electrode/probe holding bar with v groove, which also attaches to the LBM-7 manipulator, PatchStar, MicroStar and IVM.

Design and Specifications

  • Number of axes: 1
  • Travel distance: 20mm
  • Electronic resolution: 20 nm
  • Minimum step size: 0.1 µm
  • Minimum speed: 1 µm per second
  • Maximum speed: 4 mm per second
  • Memory positions: 50 on control device (unlimited via LinLab)
  • Software: 50 on control device (unlimited via LinLab)
